AdBlue Countdown Warning: What 'Engine Will Not Start in X Miles' Actually Means
Filled up your AdBlue tank but the warning countdown won't disappear? Here is why modern diesels lock you out and what needs fixing to clear the mileage lock.
Crucial Fact: If your AdBlue warning says "System Fault" rather than "Top Up Required", pouring in fluid will NOT stop the countdown.

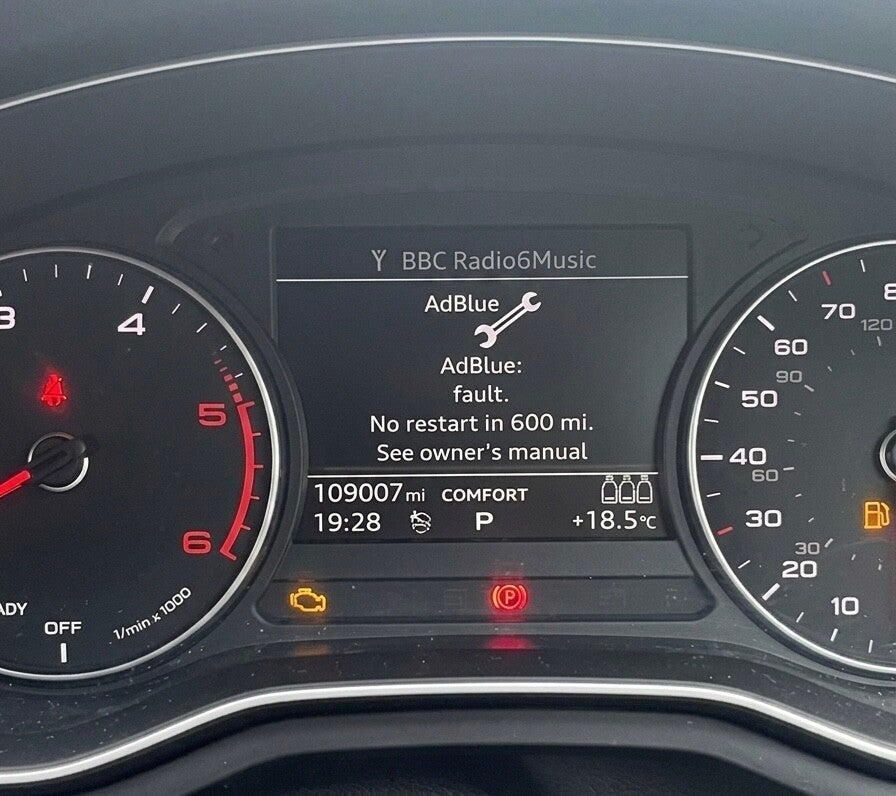

Few messages cause instant panic quite like a dashboard alert stating: "Engine start impossible in 500 miles" or "AdBlue System Fault: No restart in 50 miles". Whether you drive a Ford Transit Custom, Peugeot 3008, Audi A4, or VW Transporter, this ticking countdown clock feels like a hostage situation on wheels.
The most common reaction drivers have is to buy a 10-litre tub of AdBlue from the nearest petrol station, pour it in, and turn the key—only to find the exact same warning screen, with the mileage count dropping lower every time they drive. At TGPP Autocare in Stevenage, we see drivers every week who assumed topping up would fix the problem.
✅ Simple AdBlue Fluid Warning
- Dashboard says "AdBlue Top Up Required"
- No amber engine management light
- Triggers after 5,000–10,000 miles of normal driving
- Disappears automatically within 10–20 miles of topping up
- No diagnostic tools required
⚠️ AdBlue System Fault Warning
- Dashboard says "AdBlue System Fault" or "Service Required"
- Accompanied by Amber Engine or UREA Light
- Refilling the tank does NOT reset the counter
- Hardware failure (heater, pump, NOx sensor)
- Requires professional diagnostics and ECU reset
AdBlue vs DPF Additive (Eolys Fluid): Know the Difference
It's easy to mix these up because both involve liquid additives for diesel exhaust systems. However, they perform completely different jobs in your car:
| Feature | AdBlue (DEF) | DPF Additive (Eolys / PATS) |
|---|---|---|
| System | SCR (Selective Catalytic Reduction) | DPF (Diesel Particulate Filter) |
| Where it goes | Injected directly into exhaust stream after engine | Injected into fuel tank automatically during fill-ups |
| Purpose | Converts toxic Nitrogen Oxides (NOx) into Nitrogen & Water | Lowers burning temperature of soot inside DPF filter |
| Filling Method | User refillable via blue cap (fuel flap, boot, or under bonnet) | Garage refillable pouch or tank under vehicle body |
| Common Vehicles | Almost all modern Euro 6 diesels (2015 onwards) | Peugeot, Citroën, Ford, Volvo 1.6/2.0 HDi/TDCi diesels |
If you're seeing a message specifically referencing Particle Filter Additive Low, check out our dedicated Eolys Fluid DPF Additive Guide. If your warning mentions miles until non-start or UREA/AdBlue, continue reading below.
The Top 4 Reasons Your AdBlue Warning Countdown Won't Clear
When you pour fresh AdBlue into your tank and the mileage counter keeps ticking down, the car's computer is telling you: "I know there is liquid in the tank, but the system isn't delivering the right chemical response." Here are the primary failures we diagnose in our workshop:
1. Internal Tank Heater Element Failure
AdBlue is comprised of 32.5% high-purity urea and 67.5% deionised water. Because of this high water content, **AdBlue freezes solid at -11°C**. To prevent winter freeze-ups, manufacturers install an electrical heating element inside the AdBlue tank.
Unfortunately, in vehicles like Peugeot/Citroën (1.5 & 2.0 BlueHDi) and VW Group models, this internal heating element burns out or short-circuits. Because the heater is integrated inside a sealed plastic module inside the tank, a faulty heater throws an electrical fault code that triggers the non-start countdown—even in the middle of summer.
2. Faulty NOx Sensors (Upstream or Downstream)
Modern diesels place Nitrogen Oxide (NOx) sensors before and after the Selective Catalytic Reduction (SCR) catalyst. These sensors measure how clean the exhaust gases are in real-time. If the downstream sensor measures high NOx levels—either because the sensor itself has suffered water ingress/electrical failure, or because the SCR catalyst isn't performing—the ECU assumes the AdBlue injection system has failed and starts the countdown.
3. Crystallization & Blocked Dosing Injectors
When exposed to atmospheric air or low exhaust operating temperatures (common on vehicles doing short, low-speed stop-start journeys), the water in AdBlue evaporates rapidly. This leaves behind a stubborn, chalky white crust of urea crystals.
This crust blocks the delicate dosing injector mounted on the exhaust manifold. If the injector can't open properly, liquid can't be sprayed, exhaust emissions spike, and the car's computer initiates the lock-out timer.
4. Failed Pump Module or Ultrasonic Level Sensor
The AdBlue pump needs to pressurize liquid to roughly 5 to 7 bar before opening the injector. If the pump module fails, pressure drops. Similarly, ultrasonic fluid level sensors submerged in urea solution can suffer corrosion or accurate level reading failures, reporting the tank as empty when it's full.
Common Vehicle Culprits We See in Stevenage
AdBlue problems affect almost all diesel brands built after 2015, but specific models have notorious weak points:
Brand-Specific AdBlue Weak Points
Why Cheap OBD Scanners Won't Fix a Hard Lockout
We often get asked: "Can't you just plug in a code reader and clear the light?"
The short answer is **no**. Standard handheld code readers or generic OBD2 apps can clear minor stored engine codes, but anti-tampering software built into modern diesel ECUs intentionally prevents generic tools from clearing SCR emissions countdown lockouts.
- First, the physical hardware fault (e.g., replacing the NOx sensor or unblocking the injector) must be repaired.
- A dealer-level diagnostic computer (such as Ford FDRS, Peugeot DiagBox, or ODIS) must perform a dedicated **SCR System Adaptation & Reset Routine**.
- The vehicle must often undergo a specific 15–20 minute live road test within set speed and temperature parameters to allow the ECU to verify that exhaust NOx levels have dropped before it permanently lifts the countdown lock.
How to Prevent AdBlue Issues & Protect Your Tank
While component failures like electrical heater burnouts are down to component wear, you can significantly reduce the risk of crystallization and pump failures by following three simple rules:
3 Steps to Protect Your AdBlue System
Facing an AdBlue Warning Countdown in Stevenage?
Don't wait until the mileage hits zero and leaves you stranded. At TGPP Autocare, our RAC Approved technicians use advanced, dealer-level diagnostic equipment to identify the exact cause of AdBlue faults, replace failed sensors or components, and perform official ECU resets.
Book Diagnostic Inspection OnlineFrequently Asked Questions
If the countdown was triggered by a system fault (such as a failed tank heater element, faulty NOx sensor, or blocked injector) rather than a simple low fluid level, filling the tank will not reset it. The Engine Control Unit (ECU) requires diagnostic verification and an explicit reset procedure once the hardware fault is repaired.
Yes. European emissions law mandates that diesel vehicle manufacturers prevent engine restart once an uncorrected SCR system fault or empty AdBlue tank hits zero miles. The engine will continue running until you turn the key off, but it will not restart until fixed.
You can drive until the countdown reaches zero miles, but waiting until the last minute is risky. If the engine is switched off at zero miles, it will require recovery to a professional garage to be diagnosed, repaired, and reset.
AdBlue is a mixture of urea and deionised water. When exposed to air or low exhaust temperatures during short city trips, the water evaporates and leaves white urea crystals that block injectors and pumps. Using anti-crystallization additives when filling up helps prevent deposits from forming.
It depends on the failing component. Cleaning a clogged injector or software resets cost significantly less, whereas replacing a NOx sensor typically costs £300–£500. Replacing an entire sealed AdBlue tank (common on Peugeot/Citroën) ranges between £700–£1,200 including fitting and diagnostic adaptation.
