Ford Focus Mk3 Heater Matrix Leak: Why Your Footwell Is Wet (and the £180 Fix)

Wet carpet on the driver's side, a sweet smell in the cabin, and a coolant level that keeps dropping with nothing under the bonnet to explain it. If that's your Focus Mk3, you're not alone. We see this one regularly at our Stevenage garage.

The good news: it's often not the heater matrix itself, and it doesn't usually need the dashboard stripping out.

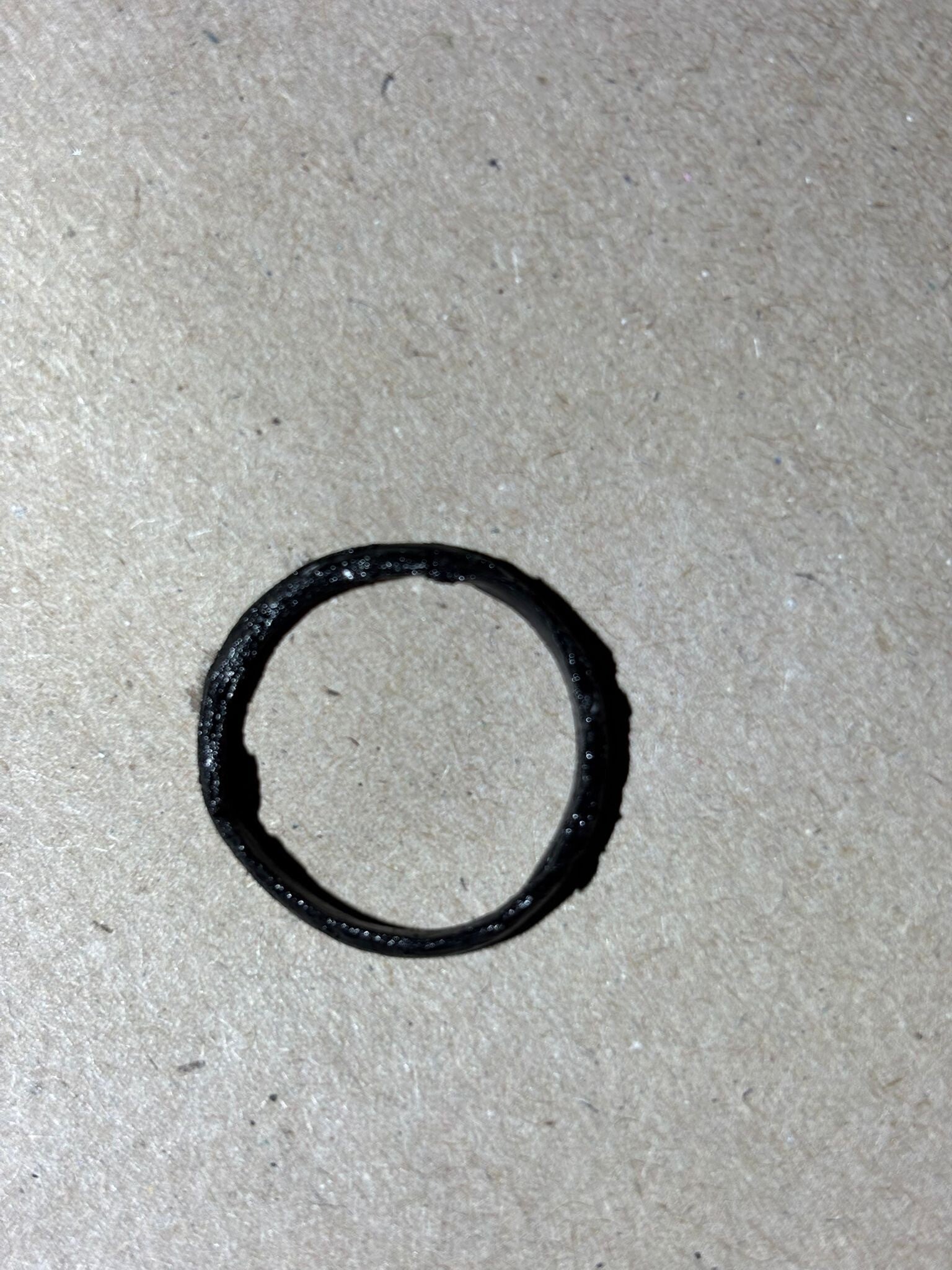

Ford Focus Mk3 heater matrix pipe seal that has failed and caused a coolant leak

A failed heater matrix pipe seal from a Focus Mk3 we repaired in Stevenage.

£180

Fixed price including parts, labour and coolant

For the common Focus Mk3 heater matrix pipe seal leak, once we've confirmed that's the cause. Main dealers often quote for a full heater matrix replacement instead.

The quick version

On the Focus Mk3, the usual culprit is the O-ring seals and plastic retaining clips on the heater matrix pipes. They harden and weaken with age, coolant seeps past the joint, and it runs down into the driver's footwell. Replacing the seals and clips fixes it without replacing the matrix.

Signs your Focus has this fault

  • Damp or wet carpet in the driver's footwell, usually under the floor mat
  • Coolant going down with no puddle under the car and nothing obvious in the engine bay
  • A sweet smell inside the car (that's coolant)
  • Windows misting up and being slow to clear
  • Weak or patchy heater performance
  • Low coolant warning on the dash

Don't keep topping up and hoping. Running low on coolant can lead to overheating, and an overheated engine is a far bigger bill than this repair. Coolant is also toxic to pets, so keep animals away from a wet footwell.

Why does it leak?

The heater matrix sits behind the dashboard, with two pipes running from it through the bulkhead to the engine bay. Each pipe joint is sealed with a rubber O-ring and held by a plastic clip. After years of heat cycles, the rubber hardens and the clips go brittle or lose their grip. A small amount of coolant gets past, and the footwell is the lowest point it can drip into.

Why do some garages quote so much?

Ford now lists the heater matrix as a complete updated unit rather than selling the original seals and clips separately. So the "official" answer is often to replace the whole matrix, which means a big interior strip down to get at it. That turns a small seal failure into a large labour bill. Owners on Ford forums report main dealer quotes of £900 to £1,000 for this job.

Full matrix replacement: interior strip down, many hours of labour, and often a quote of £900 or more. Sometimes it is genuinely needed, but not for a leaking pipe joint.

Pipe seal and clip repair at TGPP: £180 fixed, including parts, labour and coolant, in the common case where the seals are the problem.

How we fix it

  • Confirm the source. We check where the coolant is actually coming from, because a wet footwell isn't always the matrix pipes.
  • Access the heater matrix pipe joints.
  • Replace the failed O-ring seals and the fragile retaining clips.
  • Refill with coolant and bleed the system.
  • Pressure test the cooling system and check for any other leaks.

If it turns out the matrix itself has failed, or the leak is somewhere else, we'll tell you straight and explain your options before any work goes ahead.

See the failed parts

Worn seal on a Mk3 Focus heater matrix pipe Mk3 Focus heater matrix pipe seal close up Coolant leak inside the car on a Mk3 Focus

Which Focus models are affected?

  • Ford Focus Mk3, 2011 to 2015
  • Petrol and diesel, manual and automatic
  • Includes EcoBoost models

Not sure if yours is affected? If the footwell is wet and the coolant is dropping, get it checked before approving any major work.

Why get it fixed at TGPP Autocare?

  • We see this fault regularly, so we know where to look
  • A fixed £180 price including parts, labour and coolant
  • Honest diagnosis. No unnecessary heater matrix replacement
  • 12-month parts and labour guarantee on our work
  • Spread the cost with 0% PaymentAssist finance if you need it
  • 140+ five-star Google reviews from local drivers
  • Drop off and carry on with your day. We'll let you know when it's ready
Book online Call 01438 232556

Book your Focus in

Booking is open 24/7 with live availability. Choose a slot below.

Find us

TGPP Autocare Ltd
Unit 8, Chells Industrial Units, Chells Way, Stevenage, SG2 0LQ

Phone / WhatsApp: 01438 232556

Open: Monday to Friday, 8am to 6pm. Saturday by appointment.

Parking: use the free public car park on the left, just before the industrial estate. The spaces outside the unit aren't ours. Reception is at the back of the unit: in the front door, follow the lines on the floor and go through the white door.

Heater matrix leak FAQs

At TGPP Autocare, the common pipe seal and clip repair is £180 including parts, labour and coolant. A full heater matrix replacement at a main dealer is a much bigger job and is often quoted at £900 or more.

For a short time, as long as you keep a close eye on the coolant level and temperature gauge. But coolant loss can lead to overheating and engine damage, so get it sorted sooner rather than later.

Not usually. On the Focus Mk3 the common fault is the pipe seals and clips, not the matrix. We check the source of the leak first and tell you if the matrix does need replacing.

We wouldn't recommend it. Additives can clog the heater matrix and other narrow cooling passages, and they won't fix a failed seal. Fixing the cause properly is the safer route.

Coolant has a sweet smell, often leaves a coloured residue, and your coolant level will be dropping. Other causes of a wet footwell, such as a leaking door seal or blocked drain, don't affect the coolant level.

Mop up what you can and let us know when you book. The repair fixes the leak, and we can talk through the carpet when we see the car.
